TD-5635E1-VT2
Thermal Network Speed Dome
TD-5635E1-VT2(PE/432/VL30/25mm)
Introduction
Specification

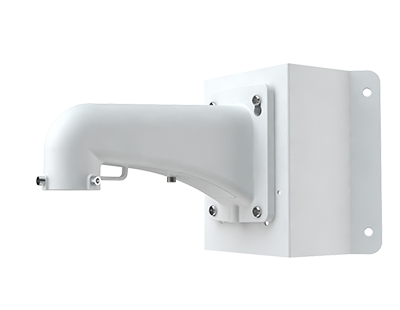

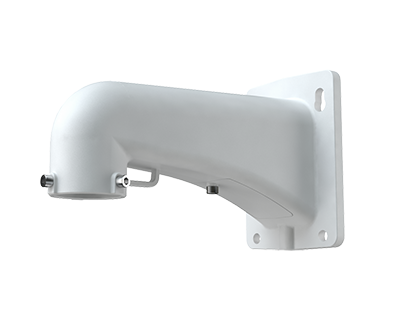

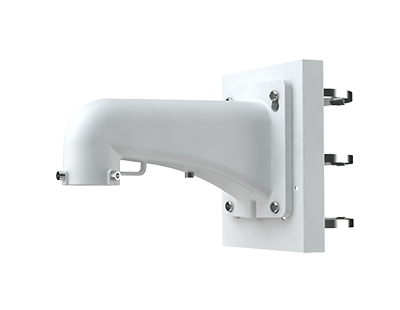

Accessories
Downloads
Features
Resolution: 384 × 288
12μm，NETD: ≤ 35mK(@25°C, F#=1.0)
Temperature range: -20°C~150°C
Multi-palette: whit hot, black hot, rainbow, iron oxide red, etc.
200~300m IR view distance
Ultra fast rotation and tracking speed
Superior low light performance
Supports intelligent analytics: Line crossing detection, region intrusion, etc.
Supports temperature measurement, fire detection
Deep-learning engine, support human/vehicles detection, auto-tracking
IP66 Water immersion / IK10/6KV Surge protection,7×24H harsh weather
Confirms to data protection regulations of major countries

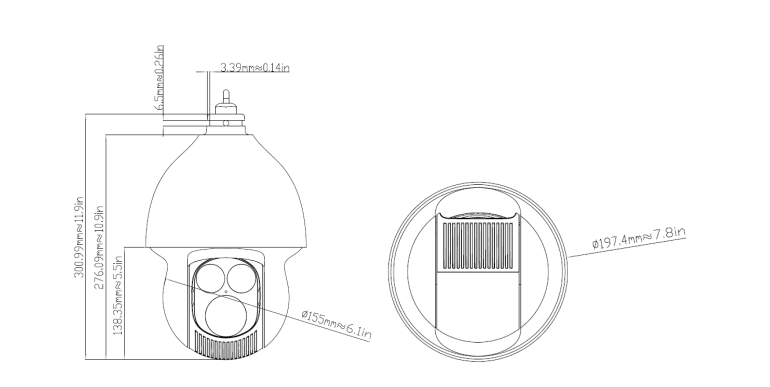

Dimension
| Model | TD-5635E1-VT2 |
| Thermal Module | |
| Detector Type | 12μm 384×288 Uncooled Infrared Focal Plane detector |
| Response Waveband | 8 μm – 14 μm |
| NETD | ≤35mK(@25°C, F#=1.0) |
| IRIS Type | Fixed IRIS |
| Lens | 25mm@F1.0 |
| Field of View (H×V) | 10.5° × 7.9° |
| Color Palettes | Black hot, white hot, rainbow, iron oxide red, etc. |
| Visible Light Module | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 2560×1440 |
| Electronic Shutter | 50Hz: 1/25s-1/25,000; 60Hz: 1/30s – 1/30,000s |
| Min. Illumination | Color: 0.01 Lux @(F1.65, AGC ON)； B/W: 0.002Lux@(F1.65, AGC ON); 0 Lux with IR |
| Focus length | f=4.8-154mm,32x optical zoom |
| Field of View (H×V) | Horizontal: 59.38° ~ 2.28° ; Vertical: 35.74° ~ 1.29°; Diagonal: 66.28° ~2.61°; |
| Aperture Range | F1.65-F4.70(W-T) |
| Aperture Control | Auto/Manual |
| Zoom Speed | Approx. 4.4s |
| Image | |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 Compression Standard | Baseline Profile / Main Profile / High Profile |
| Bit Rate Type | VBR/CBR |
| Bit Rate | 128Kbps ~ 8Mbps |
| Resolution | Optical: 4M(2560×1440)，1080P(1920×1080)，720P(1280×720)，D1，CIF，480x240 |
| Thermal : 384×288(the resolution of output image is 720P/D1/CIF/480×240) | |
| Main Stream | Optical: 50Hz: 2560 ×1440,1920 ×1080,1280 ×960,1280 ×720(1~ 25fps) 60Hz: 2560 ×1440,1920 ×1080,1280 ×960,1280 ×720 (1~30fps) |
| Thermal: 720P/D1/CIF/480x240（1~25fps） | |
| Sub Stream | Optical: 60Hz: 720P/D1/CIF(1~30fps); 50Hz: 720P/D1/CIF(1~25fps) |
| Thermal : D1/CIF/480×240(1~25fps) | |
| Third Stream | Optical: 60Hz: D1/CIF/480×240 (1~30fps); 50Hz: D1/CIF/480×240 (1~25fps) |
| Thermal : D1/CIF/480×240(1~25fps) | |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser |
| Image Overlay | Temperature can be overlaid on the thermal image |
| Audio Compression | G711A/U |
| ROI | No |
| Interface | |
| Network | RJ45 |
| Video Output | No |
| Audio | 1CH audio input; 1CH audio output |
| Storage | Built-in micro SD card slot, up to 256GB |
| Reset | Yes |
| RS485 | No |
| Alarm | 1CH alarm input; 1 CH alarm output |
| Function | |
| Temperature Measurement | Temperature Range：-20℃~150℃ |
| Temperature Accuracy：±8℃ or ± 8% | |
| Temperature Alarm | 10 rules in total (Point up to 10; Line: up to 10; Area: up to 10) |
| Over temperature alarm, low temperature alarm; | |
| Fire Detection | Dynamic fire detection, up to 10 fire points detectable |
| Remote Monitoring | Web browser / NVMS/NVR/Mobile APP |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, RTMP, SNMP, 802.1x, UPnP, HTTPS, HTTP POST, P2P, Qos |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection, video exception, audio exception |
| Intelligent Analytics | Optical: region intrusion/entrance/exiting detection/line crossing detection(human/motor vehicle/non-motor vehicle classification), target counting by line (human/motor vehicle/non-motor vehicle classification), face detection Thermal: fire detection, temperature exception alarm, region intrusion/entrance/exiting detection/line crossing detection (human/motor vehicle classification) AI function can be enabled simultaneously on thermal and optical channels |
| General Function | Watermark, IP address filtering, video mask, heartbeat, password protection |
| PoE | Yes，IEEE802.3bt |
| IR Distance | 200~300m |
| Ingress Protection | IP66 |
| Others | |
| Power | AC24V/DC24V, 2500mA, or PoE++ (802.3.bt) |
| Power Consumption | Avg.24W, max 35W, include IR 12W |
| Working Environment | -30°C ~ 60°C ; ≤95% (non-condensing) |
| Dimensions(mm) | Φ 302 × 197 |
| Weight( net) | Approx. 3KG |
| Certificate | CE, FCC |
| Installation | Wall mounting; ceiling mounting |
