TD-YZJ0313
Corner Mounting Bracket
Introduction
Specification
Downloads
Features
Aluminum alloy and steel material with surface spray treatment
Corner mounting bracket with the junction box

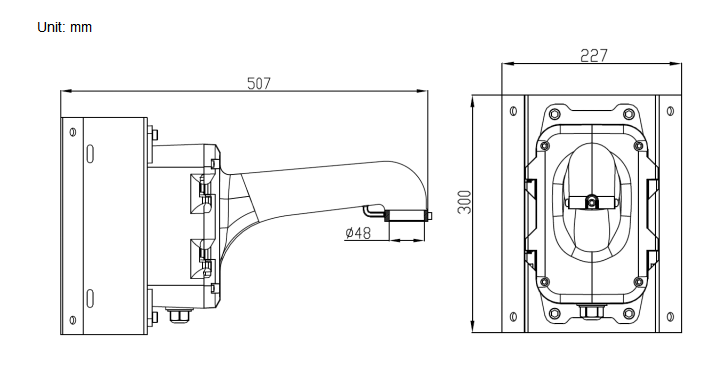

Dimension
Model | TD-YZJ0313 |
Material | Aluminum alloy and steel |
Color | White |
Min. Packaging Quantity | 1 |
Packing Size | 450x300x478mm |
Dimension | 507x300x227mm |
Net Weight | 6.3kg |
Load Bearing | The wall must be strong enough to withstand at least 3 times the weight of the speed dome and the bracket. |
Working Temperature | -40°C~+60°C(-40°F~+140°F) |
Working Humidity | 10% ~ 90% |
