TD-5463E1-VT2
Thermal Network Bullet Camera
TD-5463E1-VT2(9/PE) Thermal lens : 9.1mm
TD-5463E1-VT2(19/PE) Thermal lens : 19mm
TD-5463E1-VT2(25/PE) Thermal lens : 25mm
Introduction
Specification
Accessories
Downloads
Features
Thermal:
Resolution: 640×512
12μm，NETD: ≤35mK(@40°C, F#=1.0)
Temperature range: -20°C~150°C
Multi-palette: white hot, black hot, iron oxide red, rainbow, etc.
Sound and light warning, temperature exception alarm，fire detection
Intelligent analytics: region intrusion/entrance/exiting (human/motor vehicle classification), line crossing detection (human/motor vehicle classification)
Supports dual image fusion
Supports temperature overlay on video stream
Optical:
5MP ( 2592 × 1944 ) @30 fps
ICR auto switch, true day/night vision
50~70m IR night view distance
3D DNR, true WDR(120dB), HLC, BLC, Smart IR, distortion image correction, ROI etc.
Intelligent analytics: region intrusion/entrance/exiting detection (human/motor vehicle/non-motor vehicle classification), line crossing detection (human/motor vehicle/non-motor vehicle classification), target counting by line/area (human/vehicle /non-motor vehicle classification), face detection, face capture, illegal parking detection, loitering detection, abandoned/missing object detection

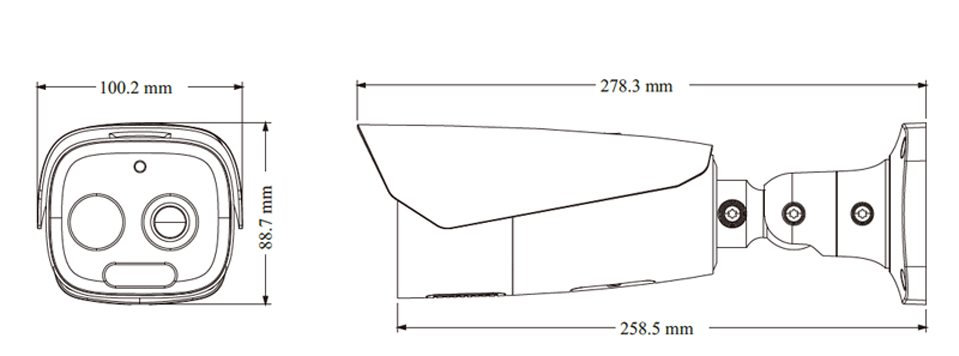

Dimension
| Model | TD-5463E1-VT2 | ||
| Thermal Module | |||
| Detector Type | 12μm 640×512 uncooled focal plane detector | ||
| Response Waveband | 8μm-14μm | ||
| NETD | ≤35mK(@25°C, F#=1.0) | ||
| IRIS Type | Fixed Iris | ||
| Lens | 9.1mm@F1.0 | 19mm@F1.0 | 25mm@F1.0 |
| Field of View(H×V) | 45.8°×37.4° | 22.9°×18.4° | 17.5°×14° |
| Color Palettes | Black hot, White hot,iron oxide red, rainbow, etc. | ||
| DRI Distance Human (0.75m) | D: 379m(1243ft) R: 95m(311ft) I:47m(154ft) | D: 792m(2598ft) R: 198m(650ft) I:99m(323ft) | D: 1042m(3418ft) R: 260m(853ft) I:130m(426ft) |
| DRI Distance Vehicle (2.3m) | D: 1163m (3815ft) R: 291m(954ft) I:145m(475ft) | D: 2428m (7966ft) R: 607m(1991ft) I:303m(994ft) | D: 3194m(10479ft) R: 799m(2621ft) I:399m(1309ft) |
| Visible Light Module | |||
| Image Sensor | 1/ 2.7" CMOS | ||
| Image Size | 2592 × 1944 | ||
| Electronic Shutter | 1/3 s ~ 1 / 100000 s | ||
| Iris Type | Fixed Iris | ||
| Min. Illumination | 0.02 lux@F1.6,AGC ON; 0 lux with IR 0.03 lux@F2.0,AGC ON; 0 lux with IR | ||
| Lens | 4mm@F1.6 | 8mm@F2.0 | 12mm@F2.0 |
| Field of View(H×V) | 81°×56.7° | 38°×27.5° | 26.6°×19.3° |
| Wide Dynamic Range | 120dB | ||
| BLC | Yes | ||
| HLC | Yes | ||
| Defog | Yes | ||
| Digital NR | 2D/3D DNR | ||
| Image | |||
| Video Compression | H.265 / H.264 / MJPEG | ||
| H.264 Compression Standard | Baseline Profile / Main Profile / High Profile | ||
| Bit Rate Type | VBR/CBR | ||
| Bit Rate | 128Kbps~ 8Mbps | ||
| Resolution | Thermal : 640×512 (the resolution of output image is 720P/D1/640×512/CIF/480×240) | ||
| Optical: 5MP ( 2592 × 1944 ), 4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ),1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 | |||
| Main Stream | Optical: 60Hz: 5MP/4MP/2K/3MP/1080P/720P (1~30fps); 50Hz: 5MP/4MP/2K/3MP/1080P/720P (1~25fps) | ||
| Thermal : 720P/D1/CIF/640×512/480×240(1~25fps) | |||
| Sub Stream | Optical: 60Hz: 720P/D1/CIF (1~30fps); 50Hz: 720P/D1/CIF (1~25fps) | ||
| Third Stream | Optical: 60Hz: D1/CIF/480×240(1~30fps); 50Hz: D1/CIF/480×240(1~25fps) | ||
| Dual Image Fusion | Yes | ||
| Temperature Overlay | Temperature can be overlaid on video stream | ||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser | ||
| Audio Compression | G711A/U | ||
| ROI | 8 regions; each ROI to be configured separately | ||
| Interfaces | |||
| Network | RJ 45 | ||
| Video Output | No | ||
| Audio | 1CH audio input; 1CH built-in speaker | ||
| Storage | Built-in micro SD card slot; up to 256GB | ||
| Reset | Yes | ||
| RS 485 | Yes | ||
| Alarm | 4CH alarm input; 4CH alarm output | ||
| Functions | |||
| Temperature Range | -20°C~150°C (-4°F~302°F) | ||
| Temperature Accuracy | ±8°C or ±8% | ||
| Temperature alarm | Over temperature alarm, low temperature alarm | ||
| Temperature Measurement | 10 rules in total (Point: up to 10; Line: 2, recommended; Area: 2, recommended) | ||
| Fire Detection | Dynamic fire detection, up to 10 fire points detectable | ||
| Remote Monitoring | Web browser/NVMS2.X/Mobile APP | ||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | ||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS | ||
| Interface Protocol | ONVIF | ||
| Storage | Network remote storage; micro SD card storage | ||
| Smart Alarm | Motion detection, SD card error, SD card full, IP address conflict, Cable connection, video exception, audio exception | ||
| Intelligent Analytics | Optical: region intrusion/entrance/exiting detection/line crossing detection (human/motor vehicle/ non-motor vehicle classification), target counting by line/ area(human/motor vehicle/non-motor vehicle classification), face detection, illegal parking detection, loitering detection, abandoned/ missing object detection Thermal: fire detection, temperature exception alarm, region intrusion/ entrance/ exiting detection/line crossing detection (human/motor vehicle classification) AI function can be enabled simultaneously on thermal and optical channels | ||
| General Function | Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction | ||
| Sound&Light Warning | White light flashing alarm and sound alarm supported | ||
| PoE | Yes , IEEE802.3 af, class0 | ||
| IR Distance | 20~ 30m | 30~ 50m | 50~ 70m |
| Protection Grade | IP66 | ||
| Others | |||
| Power Supply | DC12V / PoE | ||
| Power Consumption | < 9W | ||
| Operating Environment | Humidity: less than 95 % (non-condensing) -30 °C ~ 60 °C (-22°F~140°F) | ||
| Certificate | CE, FCC | ||
| Environment Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | ||
| Dimensions ( mm ) | 278.3 × 100.2 × 88.7 | ||
| Weight ( net ) | Approx.1.18KG | ||
| Installation | Ceiling mounting; Wall mounting | ||
