  • TD-95A3E3B-A

TD-95A3E3B-A

12MP IR Water-Proof Dome Network Camera


TD-95A3E3B-A(D/AZ/PE/AR3)    Motorized zoom lens : 2.8~12mm


  • TD-95A3E3B-A

Introduction

Specification

Accessories

Downloads

Features

H.265+/H.265/H.264+/H.264/MJPEG coding

Max. resolution: 4000 × 3000

ICR auto switch, true day / night vision

30 ~ 50m IR night view distance

Motorized zoom lens

3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding

Support image distortion correction

Built-in micro SD card slot; up to 512GB

DC12V/PoE power supply

IP67 &IK10

Support five streams

Support remote monitoring by smart phones & tablet PCs

with iOS and Android OS

Support P2P function

Intelligent analytics

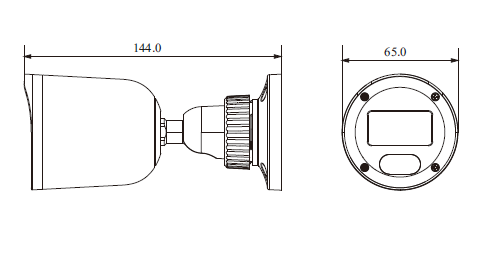

Dimension

ModelTD-95A3E3B-A
Camera
Image Sensor1 / 1.7 "CMOS
Image Size4000 × 3000
Electronic Shutter1 / 3 s ~ 1 / 100000 s
Iris TypeDC Iris
Min. IlluminationColor: 0.006 lux@F1.4,AGC ON; B&W: 0 lux with IR
Lens2.8~12mm@F1.4, H.FoV: 96°~46°;V.Fov: 70°~35°; D.FoV: 128°~58°
FocusMotorized
Lens MountΦ14
Day & NightICR
Wide Dynamic Range75dB
BLCYes
HLCYes
DefogYes
S/N Ratio≥50dB
Digital NR3D DNR
Angle AdjustmentPan: 0°~345°; Tilt:0°~77°; Rotation: 0°~345°
Video CompressionMain   stream:    H.265+   /   H.265   /   H.264+   /   H.264
Sub /Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Fourth/Fifth stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.264 Compression StandardBaseline Profile/Main Profile/High Profile
Resolution12MP (4000×3000), 8MP (3840 ×2160), 6MP (3200×1800 ), 4MP (2688×1520),
1080P(1920×1080), 720P (1280×720), D1, VGA (640×480), 640×360, CIF, 480×240
Main Stream12MP/8MP/6MP/4MP/1080P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Sub Stream1080P/720P/D1 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Third Stream720P/D1/VGA/640×360/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Fourth StreamD1/VGA/640×360/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Fifth StreamD1/VGA/640×360/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Bit Rate64 Kbps ~16Mbps
Bit Rate TypeVBR / CBR
Audio CompressionG711A / U
Image SettingsROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser
ROIEach ROI to be configured separately
Interfaces
NetworkRJ 45 10M/100M self-adaptive Ethernet port
Video OutputCVBS output (BNC × 1)
Audio1CH audio input; 1CH audio output; 1 CH built-in MIC
StorageBuilt-in micro SD card slot; up to 512GB
ResetYes
Alarm1CH alarm input; 1CH alarm output
Intelligent Analytics
Smart EventLine crossing, region intrusion/entrance/exiting (human/vehicle classification) loitering detection, illegal parking detection, abandoned/ missing object detection
StatisticsTarget counting by line/area, heat map
Exception DetectionScene change, video blur and abnormal color detection, audio exception
Face DetectionFace detection and face capture
Video MetadataSimultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 4 motor vehicle features and 1 non-motor vehicle feature
DORI Distance
LensDetectObserveRecognizeIdentify
2.8~12mm(W)86m(187ft)34m(93ft)17m(63ft)9m(48ft)
2.8~12mm(T)190m(374ft)76m(169ft)38m(100ft)19m(66ft)
Functions
Remote MonitoringWeb Browser/TVT NVMS2.0/NVR/mobile APP
Web BrowserChrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+
Online ConnectionSupport simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Network ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPS, P2P, QoS
Interface ProtocolONVIF
StorageNetwork remote storage; micro SD card storage
Smart AlarmMotion detection, SMD, SD card error, SD card full, IP address conflict, network disconnection, audio alarm
General FunctionWatermark, video mask, heartbeat, image distortion correction, corridor pattern, ANR, cloud upgrade
SecurityVideo encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP
PoEYes , IEEE802.3af
IR Distance30 ~50 m
Ingress ProtectionIP 67&IK10
Others
Power SupplyDC12V/PoE
Power Consumption< 11W
Storage Conditions- 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)
Operating Conditions- 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing)
Dimensions ( mm )? 141 × 100.2
Weight ( net )Approx. 0.93KG
InstallationCeiling mounting; Wall mounting
CertificateCE, FCC
Environmental ProtectionDirective EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
